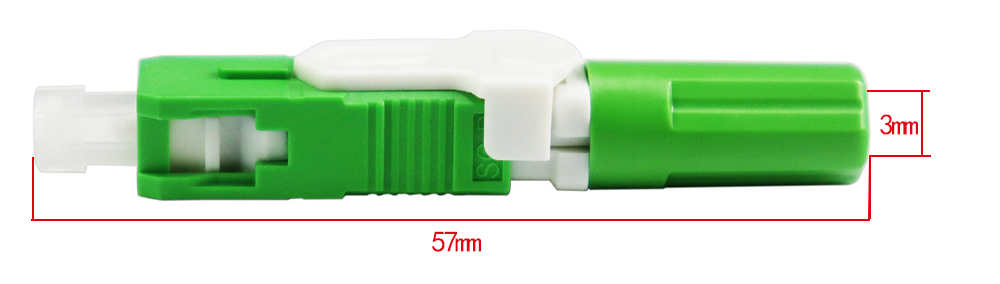

Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic
PrePolished Connector Embedded for CATV Network
An optical fiber quick connector is an optical fiber connector used
for on-site assembly. It is widely used in fiber-to-the-home (FTTH)
access
optical networks. It is not only suitable for single-mode or
multi-mode fiber but also 900 microns, 3 mm. And the 8-shaped drop
cable category,
used to connect other equipment and optical fiber panels, the
installation process only takes about 2 minutes, this kind of
connector does not
require any glue and curing process during the installation
process.
1. Product Features of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic
PrePolished Connector Embedded for CATV Network :
1. Low Insertion Loss, High Return Loss
2. Simplex, Duplex, Quad available
3. Sustained, good performance
4. Use of low cost, Use of good performance
5. Fast installation
2. Optical Performance of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic
PrePolished Connector Embedded for CATV Network :
| Project | Index | Remarks |
| Suitable for optical cable | 1260～1650nm | Consistent with GR326,IEC |
| Plug type | SC/UPC SC/APC |
| Fiber Diameter | 0.125mm |
| Insertion loss | <0.5dB (typical value 0.2dB) |
| Return loss | APC ≥55dB;UPC≥45dB |
| Repeatability | 500 repetitions / I L ≤0.3 DB |
| Tensile Strength | ≥30N(Δ IL≤ 0.2dB) |
| Operation time | About 50S |
| Reusable | ≥10 times |
| Operating Temperature | -25～+85℃ |
| High and low-temperature cycle | △IL<0.3dB, △RL<5dB | |
3. Applicable scope of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic
PrePolished Connector Embedded for CATV Network :
1. Used to open the FTTH fiber terminal end.
2. In the box, cabinet, such as wiring into the box.
3. Off the back of the accidents such as fiber, maintenance.
4. LAN, wan, data, and video transmission.
5. The construction of the fiber end-user access and maintenance.
6. Optical fiber access of mobile base station.
4. Fiber Cutting Length of Fiber Optic Fast Connector SC/APC Singlemode Fiber Optic
PrePolished Connector Embedded for CATV Network :
Fixed length device
Optical fiber cutting length diagram
5. Carefiber Service:
Carefiber Optical Technology Co., Ltd. is in Longhua New District,
Shenzhen City, Guangdong Province. Founded in 2010, after 10 years,
Carefiber group has HK Carefiber, Guizhou Carefiber, and Guangxi
Carefiber three sub-companies, they both are high-tech enterprises
dedicated to research, development, production, and sales of FTTH
products in the following categories: Indoor/outdoor drop cable,
Fiber optical fast connector, Patch cord, Pigtail, PLC splitter,
FTB coupler, Adaptor, Fiber distribution box, Fiber distribution
frame, Fiber Joint closure, indoor and outdoor base station wiring
products, MPO, data center products, 5G supporting solutions, etc,
Carefiber provides customers with standard products and customized
products of the integrated solutions.
Our Vision: Be a first-class optical communication enterprise.
Our Mission: Better products, technology, and services for
customers.
Our Value: Strive for creation and super excellence. Make customers
succeed based on mutual benefit.
FAQ:
Frequently Asked Questions (FAQs) for Fiber Optic Distribution Box:
1. What is the brand name of this product?
The brand name of this product is CFO.
2. Where is this product manufactured?
This product is manufactured in China.
3. What certifications does this product have?
This product has CE and Rohs certifications.
4. What is the minimum order quantity for this product?
The minimum order quantity for this product is 100.
5. What is the delivery time for this product?
The delivery time for this product is 7-25 days.
6. What are the payment terms for this product?
The payment terms for this product are L/C, D/A, D/P, T/T, Western
Union, and MoneyGram.
7. What is the packaging detail for this product?
The packaging detail for this product is 1pc/bag.
8. What is the supply ability for this product?
The supply ability for this product is 500pcs/day.
