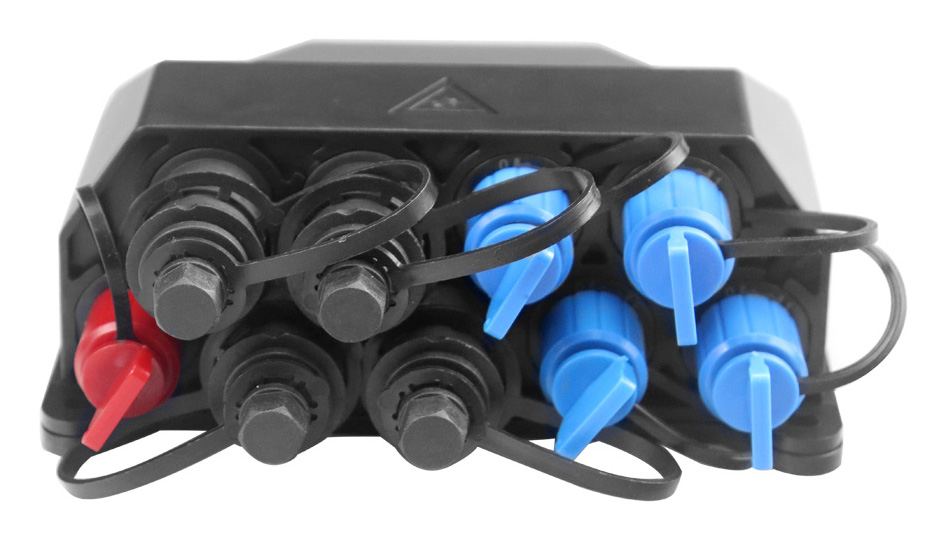

This type of fiber access termination box(FDB) can hold up to 9
subscribers. It is used as a termination point for the feeder cable
to connect with the drop cable in the FTTx network system. It
integrates fiber splicing, splitting, distribution, storage, and
cable connection in one solid protection box.
▶ High-strength material with good weather adaptability and UV
resistant.
▶Port into the end and leakage design, no need to open the box,
easy construction.
▶Internal multi-wiring, can be independent or combination with
different types of PLC Splitter.
▶Corning,Huawei and conventional waterproof adapters can be
installed, And these adapters can be distinguished by different
colors
▶Ultrasonic welding, excellent sealing performance, Waterproof to
IP68.
| Item | Specification | Remark |
| Size | 153*144*62.69mm | |
| Passageway | Max.9 core | |
| Configuration | 1*4,1*5,1*6,1*8 | |
| Material | ABS or PC+ABS or PC+PBT | |
| Box Color | Black | |
| Adapter Color | Blue,Red,Green,Black | |
| Protection Level | IP68 | |
| Weight | 0.22KG | |
| Operating Temperature | -40～+65(℃) | |
4. Mini SC / Optitap / Slim Waterproof Adapter Type 9 cores Fiber
Optic Distribution Box for Connectivity Applications:
1. Optical fiber communication in a harsh outdoor environment.
2. Outdoor communication equipment connection.
3. Pull a far wireless base station.
4. FTTx wiring engineering
5. Carefiber Service:
Carefiber Optical Technology Co., Ltd. is in Longhua New District,
Shenzhen City, Guangdong Province. Founded in 2010, after 10 years,
Carefiber group has HK Carefiber, Guizhou Carefiber, and Guangxi
Carefiber three sub-companies, they both are high-tech enterprises
dedicated to research, development, production, and sales of FTTH
products in the following categories: Indoor/outdoor drop cable,
Fiber optical fast connector, Patch cord, Pigtail, PLC splitter,
FTB coupler, Adaptor, Fiber distribution box, Fiber distribution
frame, Fiber Joint closure, indoor and outdoor base station wiring
products, MPO, data center products, 5G supporting solutions, etc,
Carefiber provides customers with standard products and customized
products of the integrated solutions.
Our Vision: Be a first-class optical communication enterprise.
Our Mission: Better products, technology, and services for
customers.
Our Value: Strive for creation and super excellence. Make customers
succeed based on mutual benefit.
FAQ:
Frequently Asked Questions (FAQs) for Fiber Optic Distribution Box:
1. What is the brand name of this product?
The brand name of this product is CFO.
2. Where is this product manufactured?
This product is manufactured in China.
3. What certifications does this product have?
This product has CE and Rohs certifications.
4. What is the minimum order quantity for this product?
The minimum order quantity for this product is 100.
5. What is the delivery time for this product?
The delivery time for this product is 7-25 days.
6. What are the payment terms for this product?
The payment terms for this product are L/C, D/A, D/P, T/T, Western
Union, and MoneyGram.
7. What is the packaging detail for this product?
The packaging detail for this product is 1pc/bag.
8. What is the supply ability for this product?
The supply ability for this product is 500pcs/day.
