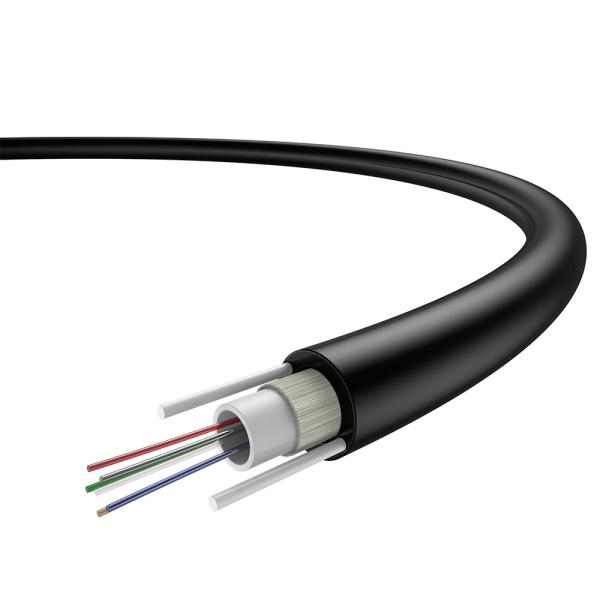

    All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit

    Ask Lasest Price
    Brand Name : CFO
    Model Number : GYFXTY
    Certification : IS9001:2025
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 5000 Kilometer/Kilometers per Month
    Delivery Time : 7-15days for bulk order
    • Product Details
    • Company Profile

    All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit

    All Dielectric Aerial Drop Optical Fiber Cable Gel Filled Subnit


    GYFXTY-2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable For Fttx​


    GYFXTY- Fiber Glass Yarn with FRP Strength Member Aerial Optical Fiber Cable


    1. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Description:


    Carefiber's Uni-Tube All Dielectric Aerial Drop cable is specifically designed for Fiber-to -the-Subscriber applications. It is a round, all-dielectric cable ideally suited for self-supporting drop-type installations as well as in lashed or conduit builds. The overall glass yarn strength member is used for additional mechanical protection.

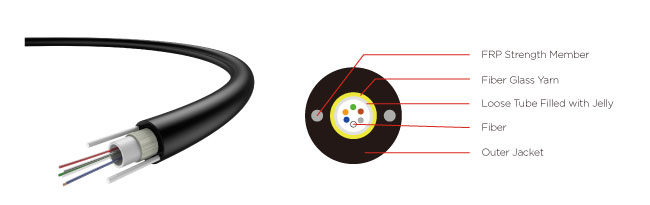

    2. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Structure and Technical Specifications --- GYFXTY-FL(Flat Drop):


    Fiber Count


    Nominal

    Diameter

    (mm)


    Nominal

    Weight

    (kg/km)



    Allowable Tensile Load (N)


    Allowable Crush

    Resistance

    (N/100mm)


    Aerial Install span with 1% sag

    Short Term

    Long Term

    Short Term

    Long Term

    NESC LightNESC MediumNESC Heavy

    2~12

    4.5 X 8.0

    39

    18007502000800100meters80meters50meters
    14~244.9X8.4451800750200080080meters60meters40meters



    3. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Structure and Technical Specifications --- GYFXTY-FG(Round Drop):


    Fiber Count


    Nominal

    Diameter

    (mm)


    Nominal

    Weight

    (kg/km)



    Allowable Tensile Load (N)


    Allowable Crush

    Resistance

    (N/100mm)


    Aerial Install span with 1% sag

    Short Term

    Long Term

    Short Term

    Long Term

    NESC LightNESC MediumNESC Heavy

    2~12

    6.5

    35

    1000400100030080meters50meters30meters
    14~247.0401200500100030070meters40meters

    20meters




    4. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Features:

    1. Small size, Low cost.
    2. Up to 24 fibers.
    3. Uni-tube gel-filled construction for superior fiber protection.
    4. Two parallel FRP wires and overall glass yarn to enhance tensile resistance. and protect the cable from mechanical damage.
    5. Designed for use with inexpensive attachment hardware. Self-supported no messenger needed.


    5. 2-24 Cores Uni-Tube All Dielectric Aerial Drop Fiber Optic Cable Applications:


    1. Outdoor application, Duct, Aerial, FTTx, Access.
    2. Trunk power transmission system.
    3. Access network and local network in high electromagnetic interfering situation



    6. Carefibr Services

    Any questions will be replied to within 24 hours.
    Professional manufacturer, Welcome to visit our company.
    100% test before shipping.
    OEM/ODM is available (As required print logo and customized color).
    Fast delivery time(2 days for samples,order 3~7 days for bulk production)

    7. FAQ
    Are you a trading company or a manufacturer?
    We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
    What is your delivery date?
    The delivery date is about 5-15 days after receipt of payment.
    Can you send free samples?
    Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
    or you can call your courier to pick it up from our office.
    The cable marking can be as required for printing?
    Yes, You have only to give us your marking.
