    FTTx Outdoor Armored Fiber Optic Cable Loose Tube Single Jacket

    Ask Lasest Price
    Brand Name : CFO
    Model Number : GYTS
    Certification : IS9001:2025
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 5000 Kilometer/Kilometers per Month
    Delivery Time : 7-15days for bulk order
    • Product Details
    • Company Profile

    FTTx Outdoor Armored Fiber Optic Cable Loose Tube Single Jacket

    FTTx Outdoor Armored Fiber Optic Cable Loose Tube Single Jacket


    FTTx Outdoor Cable Armored Loose Tube Single Jacket/Single Armor Fiber Optical Cable (GYTS)


    1. Product Description of Stranded Loose Tube Cable with Steek Tape(GYTS) :

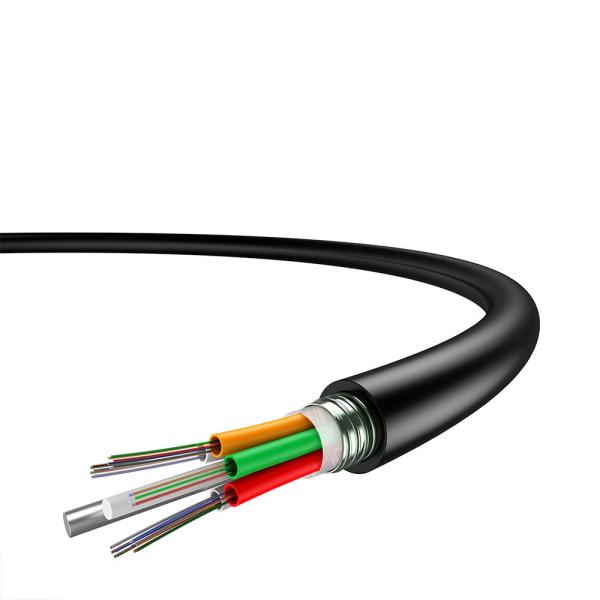

    Armored Loose Tube Single Jacket/Single Armor fiber optic cable with fibers placed in a loose buffer tube stranded around a central strength member. The cable core is protected with jelly to prevent water intrusion and migration, with a corrugated steel tape armor that provides rigid protection, and rodent resistance, and covered with a black Polyethylene out jacket.


    2. Product Features of Stranded Loose Tube Cable with Steek Tape(GYTS) :


    In the GYTS Cable,single-mode/multimode fibers are positioned in the loose tubes, and the tubes are filled with water blocking the filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. A PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.

    1. Up to 288 fibers.

    2. Loose tube gel-filled construction for superior fiber protection.

    3. Corrugated steel tape armor to protect the cable from mechanical damage and rodent protection.

    4. UV and moisture-resistant design.


    3. Applications of Stranded Loose Tube Cable with Steek Tape(GYTS) :


    1. Backbones and Access.
    2. Installed in ducts and underground conduits.
    3. Adopted to Outdoor distribution

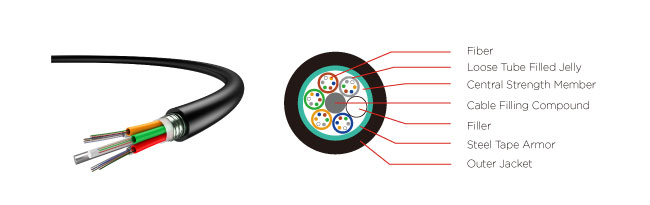

    4. Product Construction of Stranded Loose Tube Cable with Steek Tape(GYTS) :


    1. Fiber:2-288 fibers Loose tube gel-filled

    2. Armor: Corrugated steel tape

    3. Central Strength Member: FRP or Steel Wire

    4. Outer Jacket: Black UV-and moisture-resistant polyethylene (PE)


    5. Optin of Stranded Loose Tube Cable with Steek Tape(GYTS) :


    The dry core structure is available, usd the “ - DC” suffix.


    6. Structure and Technical Specifications of Stranded Loose Tube Cable with Steek Tape(GYTS):


    Fiber Count


    Nominal

    Diameter

    (mm)


    Nominal

    Weight

    (kg/km)


    Max Fiber

    Per Tube


    Max No. of

    (Tubes+fillers)



    Allowable Tensile Load (N)



    Allowable Crush

    Resistance

    (N/100mm)


    Short Term

    Long Term

    Short

    Term

    Long

    Term

    2~30

    9.7

    96

    6515006001800800

    32 ~48

    10.7

    111

    8615006001800800

    50 ~72

    11.6

    13612620006001800800

    74 ~96

    13.0

    16612820006001800800
    98~14415.1228121225006001800800


    7. Optical Characteristics of Stranded Loose Tube Cable with Steek Tape(GYTS):


    Fiber Type

    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation

    (+20℃)

    850 nm

    ≤3.0 dB/km

    ≤3.3 dB/km

    1300 nm

    ≤1.0 dB/km

    ≤1.0 dB/km

    1310 nm

    ≤0.36 dB/km

    ≤0.40 dB/km

    1550 nm

    ≤0.22 dB/km

    ≤0.23 dB/km

    Bandwidth

    850 nm

    ≥500 MHz· km

    ≥200 Mhz· km

    1300 nm

    ≥500 MHz· km

    ≥500 Mhz· km

    Numerical Aperture

    0.200±0.015 NA

    0.275±0.015 NA

    Cable Cut-off Wavelength λcc

    ≤1260 nm

    ≤1450 nm


    8. Carefibr Services


    Any questions will be replied to within 24 hours.

    Professional manufacturer, Welcome to visit our company.

    100% test before shipping.

    OEM/ODM is available (As required print logo and customized color).

    Fast delivery time(2 days for samples,order 3~7 days for bulk production)


    9. FAQ


    Are you a trading company or a manufacturer?
    We are a manufacturer specializing in Fiber Optic PLC splitters, Patch Cords, Adapter, Fast connectors, and other Communication Products. OEM & ODM services are available.
    What is your delivery date?
    The delivery date is about 5-15 days after receipt of payment.
    Can you send free samples?
    Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
    or you can call your courier to pick it up from our office.
    The cable marking can be as required for printing?
    Yes, You have only to give us your marking.
