12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network

Carefiber Optical Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network from wholesalers

    Buy cheap 12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network from wholesalers
    • Buy cheap 12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network from wholesalers
    • Buy cheap 12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network from wholesalers
    • Buy cheap 12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network from wholesalers

    12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network

    Ask Lasest Price
    Brand Name : CFO
    Model Number : CFO-FDB-55
    Certification : CE,Rohs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500pcs/day
    Delivery Time : 7-25days
    • Product Details
    • Company Profile

    12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network

    12 Cores Pre Connectorized Fiber Distribution Terminal Of FTTX Network


    12 Cores Pre Connectorized Fiber Distribution Box Of FTTX Network System​


    Pre-connecterized Fiber Distribution Box for Fiber Optical

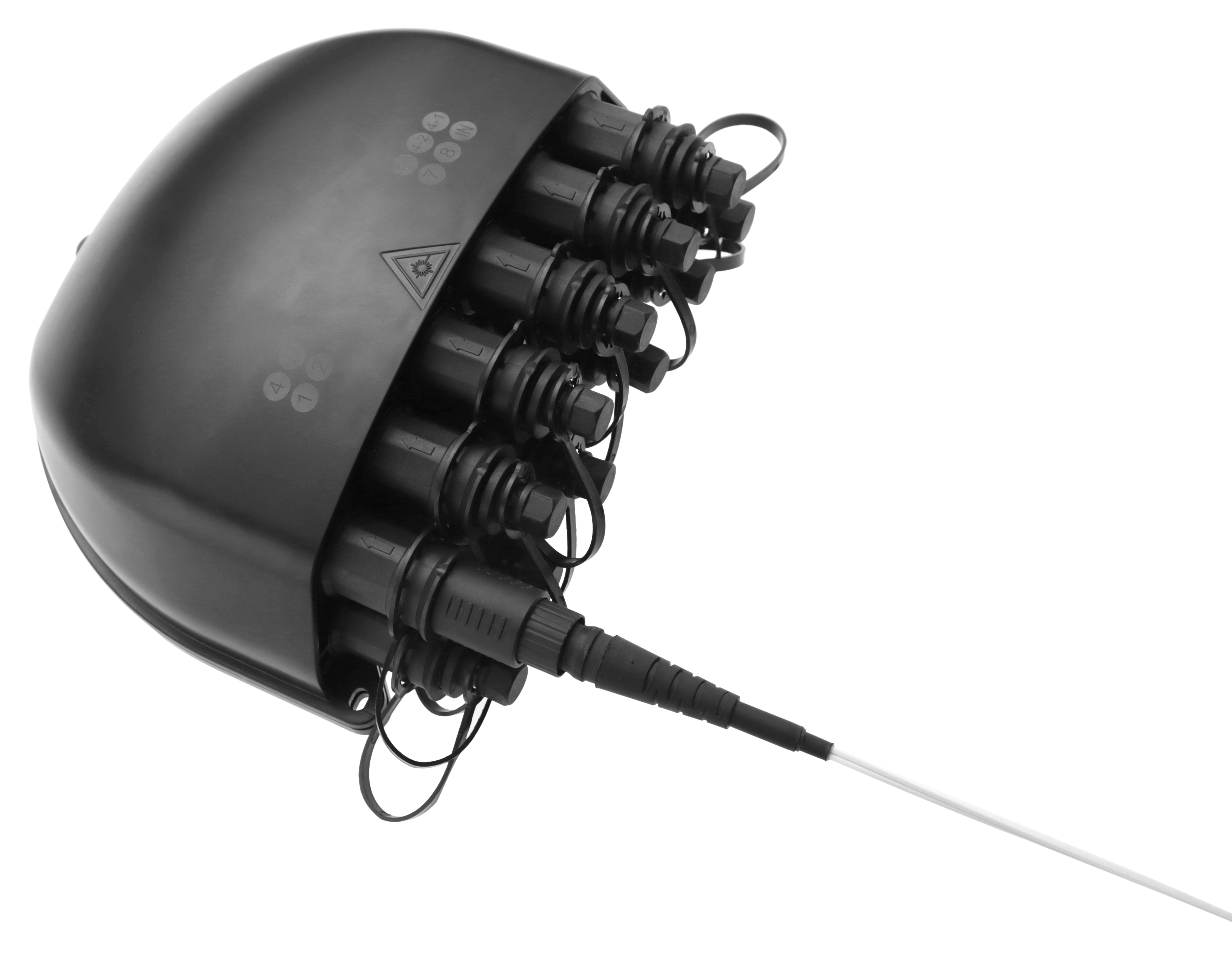

    The Carefiber fiber access termination box(FDB) is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.


    Pre-connecterized Fiber Distribution Box Features:


    1. Apply to wall-mounted Hold-up and pole-type installation

    2. High-strength material with good weather adaptability and UV resistance.

    3. Port into the end and leakage design, no need to open the box, easy construction.

    4. Internal multi-wiring, can be independent or combination with different types of PLC Splitter.

    5. Optiatp, Mini SC, Slim, and conventional waterproof adapters can be installed, And these adapters can be distinguished by different colors.

    6. Ultrasonic welding, excellent sealing performance, Waterproof to IP68.


    Pre-connecterized Fiber Distribution Box Application scenarios:


    Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is Corning OPT adapter or Huawei Fast connector, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple, easy to install, and no special tools are required.



    Pre-connecterized Fiber Distribution Box Technical Specification:


    ItemSpe.Remark
    Size196*158

    196*158*76mm

    Passageway

    Max.12 core

    Configuration

    1*2,1*4,1*8,

    Material

    PC+ABS or PC+PBT

    Box Color

    Black

    Adapter Color

    Blue, Red, Green, Black

    Protection Level

    IP68

    Operating Temperature

    -40~+65℃


    12 Cores Pre Connectorized fiber distribution terminal Of FTTX Network


    Pre-connecterized Fiber Distribution Box Performance (With the connector loss ) :


    ILPDLUNI.DIR.RLCapacity Max.
    Non Fused OutputFused Output
    1*4

    ≤7.5

    /

    ≤0.2

    ≤0.6

    ≥55

    ≥55

    2pcs

    1*8

    ≤11.0

    /

    ≤0.2

    ≤0.8

    ≥55

    ≥55

    1pcs

    1*9(1*2+1*8)

    ≤4.3

    ≤15.0

    ≤0.2

    ≤0.8

    ≥55

    ≥55

    1pcs


    Product Display:



    Carefiber Service:


    Carefiber Optical Technology Co., Ltd. is located in Longhua New District, Shenzhen City, Guangdong Province. Founded in 2010, after 10 years, Carefiber group has HK Carefiber, Guizhou Carefiber, and Guangxi Carefiber three sub-companies, they both are high-tech enterprises dedicated to research, development, production, and sales of FTTH products in the following categories: Indoor/outdoor drop cable, Fiber optical fast connector, Patch cord, Pigtail, PLC splitter, FTB coupler, Adaptor, Fiber distribution box, Fiber distribution frame, Fiber Joint closure, indoor and outdoor base station wiring products, MPO, data center products, 5G supporting solutions, etc, Carefiber provides customers with standard products and customized products of the integrated solutions.


    Our Vision: Be a first-class optical communication enterprise.

    Our Mission: Better products, technology, and services for customers.

    Our Value: Strive for creation and super excellence. Make customers succeed based on mutual benefit.
