Pre Connectorized Optical Distribution Box 16 Core IP68 Waterproof
Pre-Connecterized 16 Core Waterproof Fiber Distribution Box For
Fttx Network / Fiber Optic Terminal Box
Carefiber pre-connectorized fiber distribution box is a type of
fiber distribution box that comes pre-assembled with fiber optic
cables and connectors, ready for installation or use without the
need for additional connector assembly. can connect the drop cable
with the feeder cable as the termination point in the Fttx network,
which is able to meet at least 16 users' requirements. It can help
with splicing, splitting, storage, and management with suitable
space.
Pre-Connecterized 16 Core Waterproof Fiber Distribution Box Features:
1. Water-proof design with IP-68 Protection Level.
2. High-strength material with good weather adaptability and UV
resistance.
3. All stainless metal plates and anti-rusting bolts, and nuts.
4. Fiber bend radius control is more than 60mm.
5. Suitable for the fusion splicer or mechanical splice.
6. Mechanical sealing structure and mid-span cable entry.
7. Can be used for splicing.
8.16 ports cable entrance for the drop cable.
9. 16 Water-proof adapter for drop cable patching
Pre-Connecterized 16 Core Waterproof Fiber Distribution Box Application scenarios:
1. Optical fiber communication in a harsh outdoor environment.
2. Outdoor communication equipment connection.
3. Pull a far wireless base station.
4. FTTx wiring engineering
Pre-Connecterized 16 Core Waterproof Fiber Distribution Box Specification:
| Items | Specification | Remark |

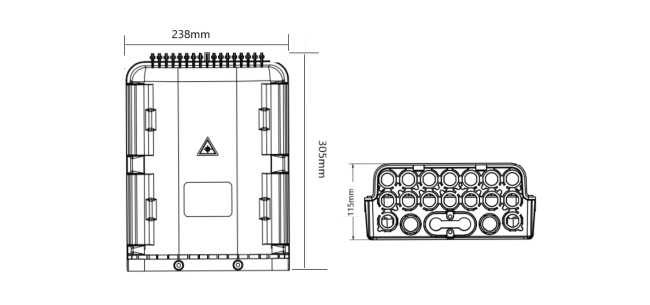

| Size | 305*238 *115 mm | |
Weight | 1.8kg | |
Passageway | Max.2-4 core |
|
Optical fiber fusion disc | Max.5pcs(8F/disc) |
|
Configuration | 1*2,1*4,1*8 ,1*16 |
|
Box Material | PC+ABS |
|
| Box Color | Black |
|
Adapter Type | Optiatp-Waterproof |
|
Adapter Color | Blue,Red,Green or Black |
|
Protection Level | IP58 |
|
Operating Temperature | -40～+65(℃) |
|
Pre-Connecterized 16 Core Waterproof Fiber Distribution Box Introduction to different configurations:
Option 1:The interior is equipped with one 1*16 PLC Splitter
Option 2:The interior is equipped with one 1*8 PLC Splitter
Option 3:The interior is equipped with one 1*2 and 1*8 PLC Splitter
Option 4:The interior is equipped with one 1*4 and 1*8 PLC Splitter
Pre-Connecterized 16 Core Waterproof Fiber Distribution Box Performance (With the connector loss ):
| IL |
PDL |
DIR. |
DIR. |
RL |
Capacity Max. |
Non Fused outiput | Fused-output |
1*4 | ≤7.5 | / | ≤0.2 | ≤0.6 | ≥55 | ≥55 | 2pcs |
1*8 | ≤11.0 | / | ≤0.2 | ≤0.8 | ≥55 | ≥55 | 2pc |
1*16 | ≤14.0 | / | ≤0.2 | ≤1.2 | ≥55 | ≥55 | 1pc |
1*9(1*2+1*8) | ≤4.3 | ≤15.0 | ≤0.2 | ≤0.8 | ≥55 | ≥55 | 1pc |
1*11(1*4+1*8) | ≤7.5 | ≤18.2 | ≤0.2 | ≤0.8 | ≥55 | ≥55 | 1pc |
Pre-Connecterized Fiber Distribution Box Describe:
1. Time and labor savings: A pre-connectorized fiber distribution
box can save time and labor costs by eliminating the need for
on-site connector assembly. This can be particularly important in
situations where access to the installation site is difficult or
where the installation needs to be completed quickly.
2. High-density connectivity: Pre-connectorized fiber distribution
boxes are designed to accommodate a large number of fiber
connections in a small space. They may feature multiple ports or
adapters to allow for easy connection of fiber optic cables, and
may be available in different sizes to meet the needs of different
applications.
3. Protection and organization: Pre-connectorized fiber
distribution boxes provide protection for fiber optic cables and
help to keep them organized. They typically feature a rugged,
weather-resistant enclosure that can withstand exposure to the
elements and prevent damage to the cables.
4. Compatibility with Connector: Pre-connectorized fiber
distribution boxes are typically compatible with a Connector, such
as Slim Connector, or Optitap Connector.
Easy installation and maintenance: Pre-connectorized fiber
distribution boxes are designed to be easy to install and maintain.
They may feature removable trays or panels for easy access to the
fiber connections and may include labeling or color-coding to help
identify the different cables and connections.
