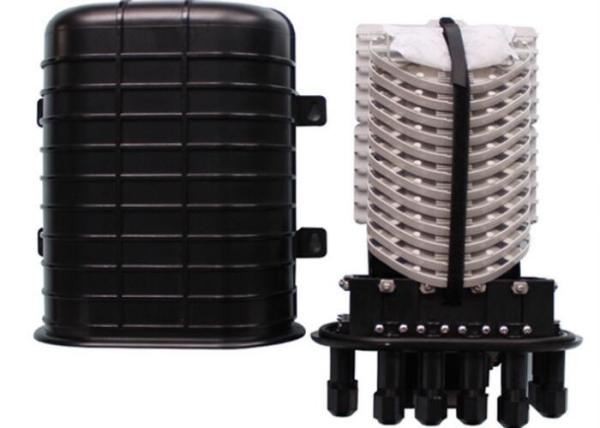

    Dome Type Fiber Optic Joint Box PC Plastic 144 Core Optical Fiber Closure

    Ask Lasest Price
    Brand Name : CFO
    Model Number : Joint Closure
    Certification : Rohs
    Payment Terms : L/C, T/T, Western Union;paypal
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Dome Type Fiber Optic Joint Box PC Plastic 144 Core Optical Fiber Closure

    Dome Type Fiber Optic Splitter Box PC Plastic 144 Core Fiber Joint Closure


    1. Description:


    1. This Series for Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function

    2. Also have the function of optical cable splitting and wiring,

    3. suitable for the installation of main Optical cables and drop cables with different diameters

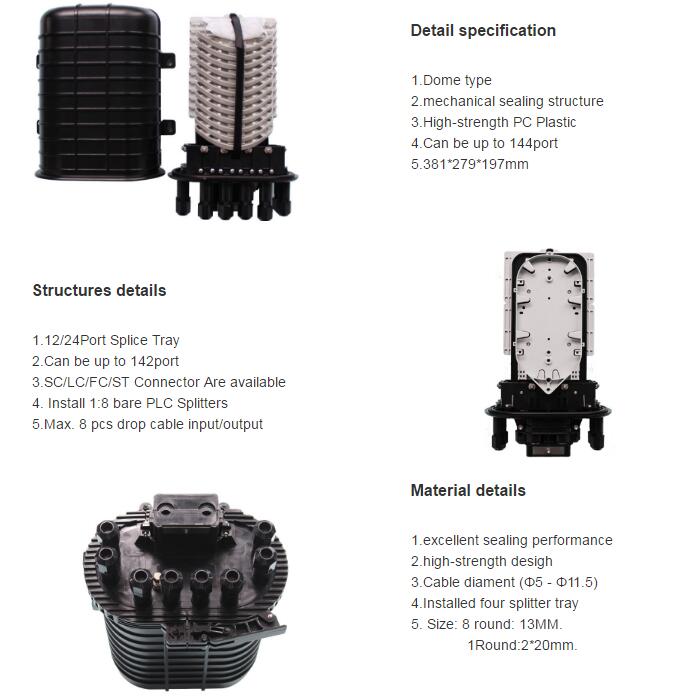

    2. Specification:

    1. The closure adopts mechanical sealing structure. There is one oval shaped cable port entrances in base. The big entrance is used for the sealing of uncut straight-through fiber cable, the small ports are used for branch fiber cable and drop cable.

    2. To adopt engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance.

    3. It can be installed four splitter tray and 1:8 bare PLC Splitters.

    4. There are different drop cable elements to be chosen (Φ5 - Φ11.5 ). Max. 8 pcs drop cable input/output (special type can be customized).

    5. The patented sealing structure keep good sealing performance after re-entry and re-using.

    6. It could save the installation time and improve work efficiently.



    3. Application:

    1. Suitable for bunchy & ribbon fibers.

    2. Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting.

    3. It’s especially applicable to FTTH optical fiber distribution.


    Item
    Splice Tray Capacity
    Splitter Tray
    Type of Adaptor & Qty
    Max. Capacity
    CFO-2016 I (bunchy)
    12 pcs (6-12F per tray)
    None
    None
    144 cores
    CFO-2016 II (bunchy)
    8 pcs (6-12F per tray)
    4
    2-1:8
    96 cores

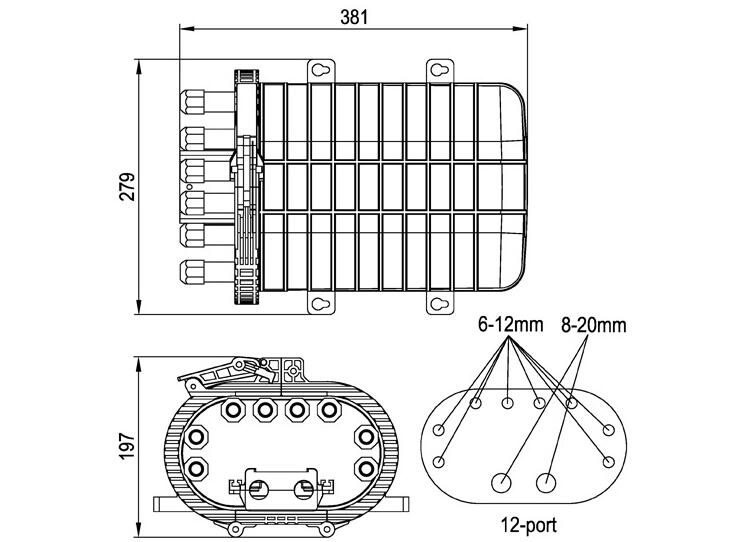

    Structure of the 144 core Fiber optic Harga Joint Closure
