MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable

Carefiber Optical Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable from wholesalers

    Buy cheap MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable from wholesalers
    • Buy cheap MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable from wholesalers
    • Buy cheap MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable from wholesalers

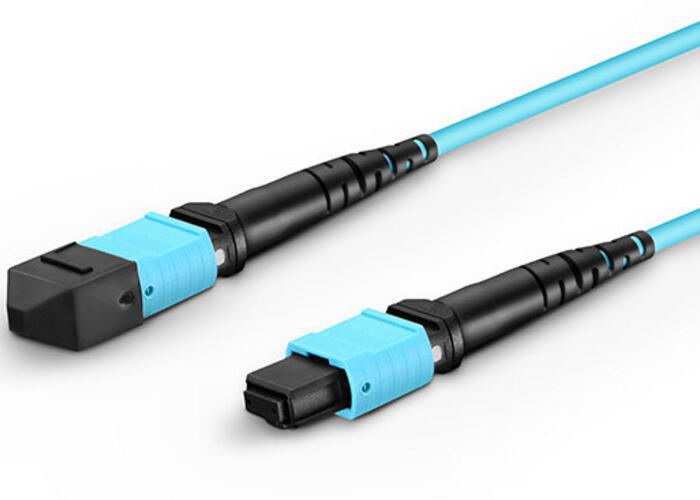

    MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable

    Ask Lasest Price
    Brand Name : CFO
    Model Number : MPO patch cord
    Certification : Rohs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union;paypal
    Supply Ability : 2000pcs/day
    Delivery Time : 3-5day for samples, 7-15days for bulk order
    • Product Details
    • Company Profile

    MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable

    MPO - MPO Patch Cord Female - Female MultiMode OM3 10G 24 Core Optical Fiber Cable


    1. Features:


    Eliminate termination errors, Min installation time
    Each cable is 100% tested for low insertion loss and back reflection
    Optimized performance - Elite MTP and discrete premium connector
    Support 40G PLRL4 PSM in applicable parallel optics networks
    Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard


    2. Applcations:


    Asynchronous Transmission Mode(ATM)

    Passive optical networks (PON)

    Fiber to The Home (FTTH)

    Local Area Networks (LAN)

    Cable Television (CATV)

    Test Equipment


    3. Connector requirement


    Multi ModeSingle Mode
    ILMPO

    Single max :0.35db (L)

    Single Max : 0.60db (G)

    Single max :0.35db (L)

    Single max :0.75db (G)

    LCMAX :0.10dB(L) MAX :0.15 db (G)max :0.30db
    RLMPO>20DB>60DB (8 degree Angle Polish)
    LC>30db>50 db (UPC) >60DB(APC)
    MechanicalMPO<0.2DB, 200 times insertion
    LC<0.2db, 500times intertion
    Working Temp-20~+60℃
    EnviromentalStorage Temp-40~+70℃
    Install Temp-5~+50℃

    4. How to Choose The Right Fiber Optic Cable Type?

    PS: The difference of OM4 and OM3 fiber mode as the following
    1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
    2. The effective modal bandwidth for OM4 is more than double that of OM3.
    3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

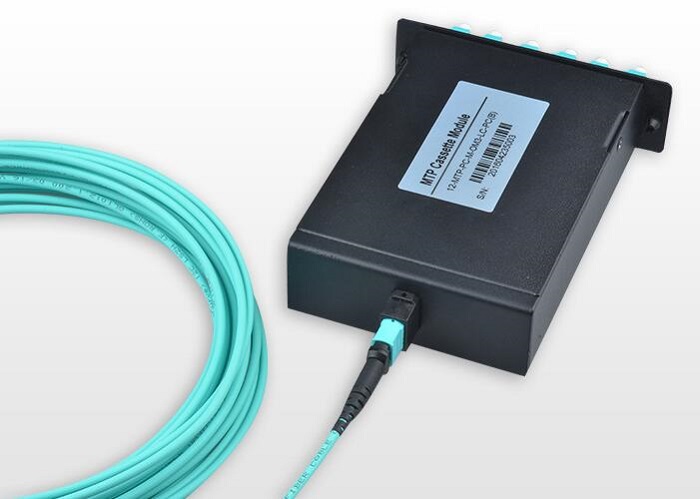

    Female Cabling for 40GBASE SR4 QSFP+ and Multi-Fiber Migration Networks


    5. Carefiber care our life.


    200 employees


    A R&D center


    A GR-326-CORE lab


    A Class one million dust-free & clean workshop


    8 years experience in manufacturing fiber optic products


    8 years OEM experience and have professional & complete production line


    8 years experience of fiber optic R&D team


    8 years experience in manufacturing plastic and tooling products


    Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.


    We sincerely invite all interested buyers to visit our company and contact us directly for further information. Carefiber, Care you life.
