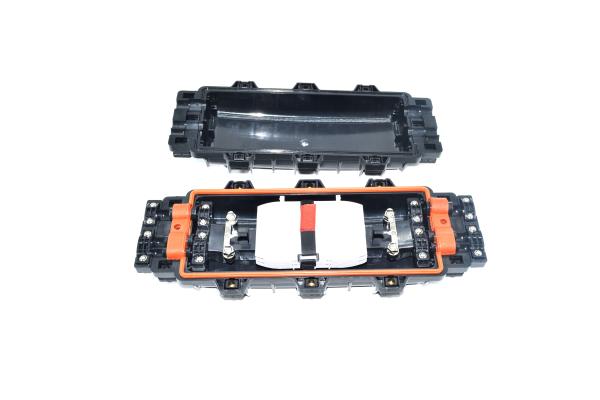

Horizontal type 24 fibers 2 inlets 2 outlets cable connection Fiber
optic splice closure joint box
Application
Widely used in aerial, duct places outdoor and can be directly
buried underground
Features
•Having good mechanical performance, strong bad weather resistance
capacity as well as electric features by use of high quality
polypropylene together with thermal aging additive
•Made of material with good capability of outdoor environment
resistance and high durability
•Having reliable cable fixing and grounding facilities
•Using self-adhesive isolative tape and glue belt to seal

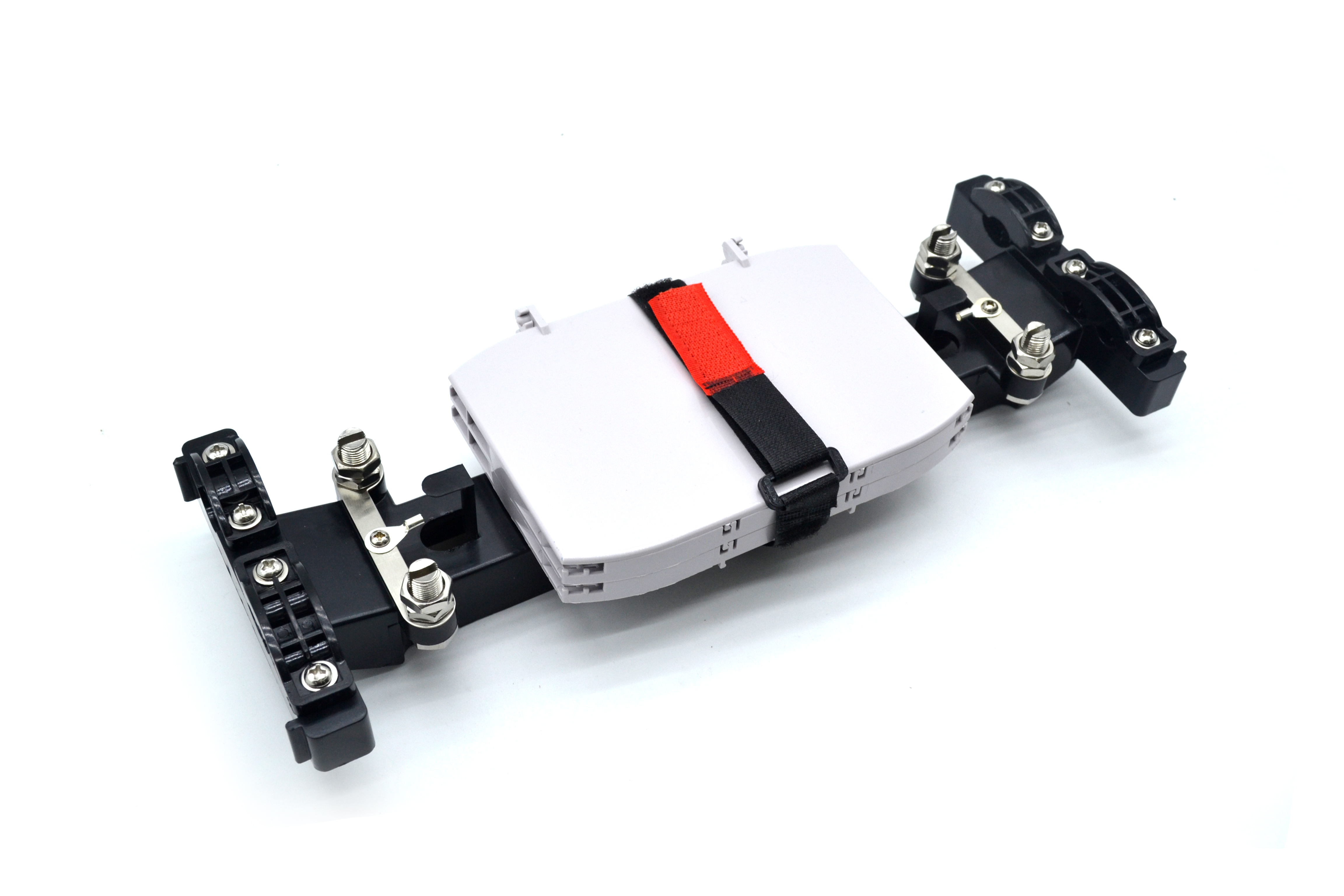

•To use rotating method to connect fiber organizer cassette result
in easy installation
•Mechanical design suitable for installing, fiber splicing storage
and cable connection
•Compact and tight
Main Technical Parameters for fiber optic splice closure
•Applicable environment temperatures: -40°C~+65°C
•Air pressure: 70~106Kpa
•Pull-out strength≥1000N, compressive force to shell≥2000N ,
impact: 16N.m
•Bending force to fiber cable: 150N (±45°), torsion force to fiber
cable: 50N.m (±90°)
•Tightness: no pressure drop within the enclosure pressurized to
60Kpa at 70°C for 100 hours
•Insulation resistance≥2×104MΩ,resistance to 15KV/min without break
down
•Life expectancy: 25 years
| NO. | Name | Model | Box material | High * width * depth | maximum capacity
(core) |
| 01 | Horizontal (buried)
Optical fiber connector box | GPX72-JTO-A | ABS/PC | ABS 2 in 2 out
460*170*110 | 12-72 cores |
PC 3 in 3 out
480*185*120 | 12-144 cores |
| 4 in 4 out | 12-288 cores |
| 02 | Vertical (barrel) Optical fiber splice box | GPX72-JTO-B | ABS/PC | ABS 2 in 2 ou
370*150 | 12-96 cores |
PC 3 in 3 out
410*140 | 12-288 cores |
| 4 in 4 out | 12-288 cores |
