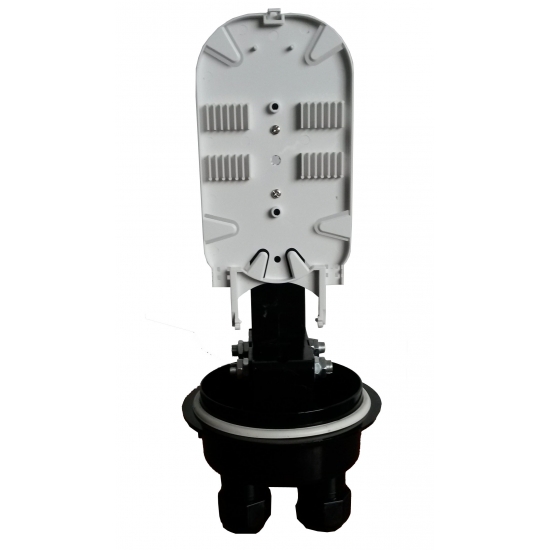

96FO Fiber Optic Joint Box , Dome Mechanical Seal fiber optic joint
closure
Small dome closure, 96 splice, nut tightening seal cable ports, 4
circular nut ports, loop-through cable is not permitted. IP68,
suitable for aerial, duct, manhole application.
Features:
▪ IP68
▪ Compact size.
▪ Dome type fully mechanical sealing sytem.
- Nut tightening ports with rubber glands;
- Rubber grommet between cover and base.
▪ Reliable cable fastening device and system.
Specification:
| Dimensions and Capability |
| Dimensions | 370 mm × Φ190 |
| Cable Ports | 4 & Φ16 mm |
| Splice tray | 12/24 FO |
| Max. number Splice trays | 4 pcs |
| IP Rating | IP 68 |
| Operation Conditions |
| Temperature | -40℃~+60℃ |
| Humidity | ≤95% (at 40℃) |
| Air Pressure | 70kPa ~106kPa |
| Performance |
| Life Expectancy | 25 years |
| UV resistant additives | 5% |
| Flame resistant | VO |
| Seal material of the closure | Rubber gasket |
