SMC Material Optical Fiber Distribution Cabinet , 144 Core Fiber
Wall Mount Enclosure
1. Descriptions of products:
Cross connection

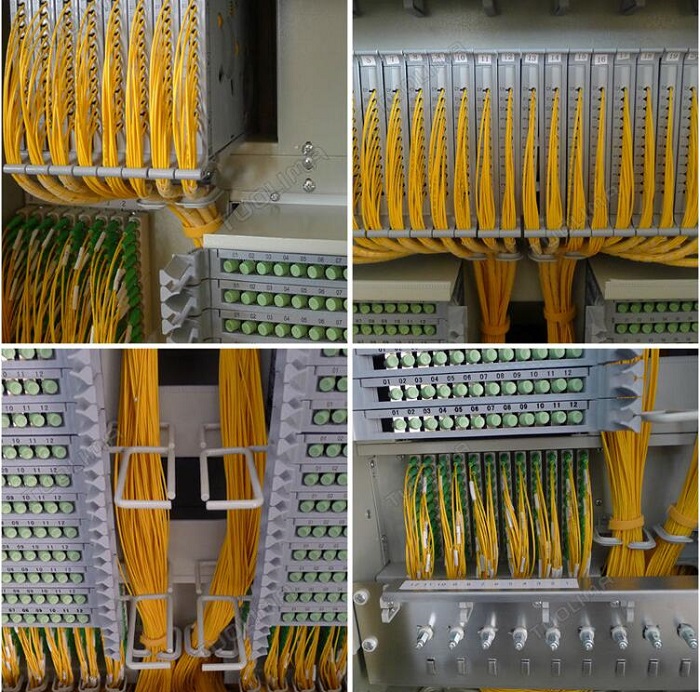

Cabinet is used for connecting trunk and distributing optical fiber
cable.it carries out the function of splicing storage and
distribution, it is mainly used in the CATV.
Telecommunication equipment room and network equipment room.
2. Structure Characteristic:
Modular design provides the largest flexibility, satisfy the needs
of the present and future development
The body using the SMC or stainless steel and surface using
electrostatic spray so it has good corrosion resistance and
anti-aging function, the wind protection class of the body achieves
the IP66 level. The effect of defense dewing is excellent.
The module tray can spin out of 90 degrees around the axis in the
left front, and the bevel of the adapters within the module takes
on 30 degrees. The clip-locked installation ensures the bending
radius of the fiber directly and prevents the eyes from injury.
Weld disk can spin out of 90 degrees, and then draw out, so its
convenient to construction, and also convenient to expansion and
maintenance
cross connection cabinet has doors in the front and back, have
ample space for cabling, convenient to operation and maintenance
cross connection cabinet has reliable device for fastness, peeling
and grounding of the optical cables
Insulation resistance between high voltage protection earth and
box20,000MΩ /500V (DC)
Bearing pressure voltage> 3000VAC (50Hz) 1min not breakdown,
arcing
fiber optic cross connect cabinet Mechanical Durability Test :
≥1000 times
2. Packaging
Package Detail: 10 pcs in a carton or customized request
Delivery Detail: It dependent on the quantity of your order.
Normally 15-30 days for one 20" container.
3. Shipping
1. Express:
For the sample or the small order quantity from you, we can send
the good off
immediately after we sign the contract, and we adopt the air
express courier.
2. Air shipment:
We can adopt the bulk air shipment for the medium orders. If you
have your own
agent to collect the commodity at the local air port, this method
may be suitable for you.
3. Sea freight
If you give us a larger order and the order is more than 3 cubic
meters, we
usually adopt the sea freight, it’ll take a longer time to deliver
the goods, may be 20- 30 days.
We can send you paperwork which is required for the customs
clearance in case of the different regulation of your country.
4. Normally, our minimum order quantity is 60 m2, just to make sure
the commodity's safeness. But it depends on different condition,
any order is
welcomed , and we will package the product in the safest way.
5. Payment terms: We can accept L/C at sight, 30% T/T in advance,
the balance paid before shipment.
For the old clients, we can provide the O/A service.
Warranty: We'll be responsible for free replacement if our product
itself has quality problems during one year after receiving.
