Green Simple FC Fiber Optic Adapter Single Mode With Zirconia
Sleeves ROHS Approved
SC adapters are flange type, single mode adapters are with zirconia
sleeve while multimode fiber adapters are with bronze sleeve. free samples SC/FC/ST/LC/MU/E2000/MTRJ fiber optic adapter ,
optical connector,5db-20db fiber optic attenuator factory
1. Features:
Approved by ROHS and TLC.
Zirconia sleeves or phosphor bronze sleeves optional.
Excellent interchangeability and repeatability
High intensity, wear ability, dimensional precision.
Environmentally stable.
Good temperature characteristics.
Customized specification.
2. Appications:
Fiber optic communication network
Optical Broadband Access Network
CATV system
Optic instrumentation
Optic LAN
Adapter docking
3. Specifications:
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 |
| SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC |
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 |
| Durability | Time | >1000 | >1000 | >1000 |
| Operating Temperature | °C | -40~75 | -40~75 | -40~75 |
| Storage Temperature | °C | -45~85 | -45~85 | -45~85 |

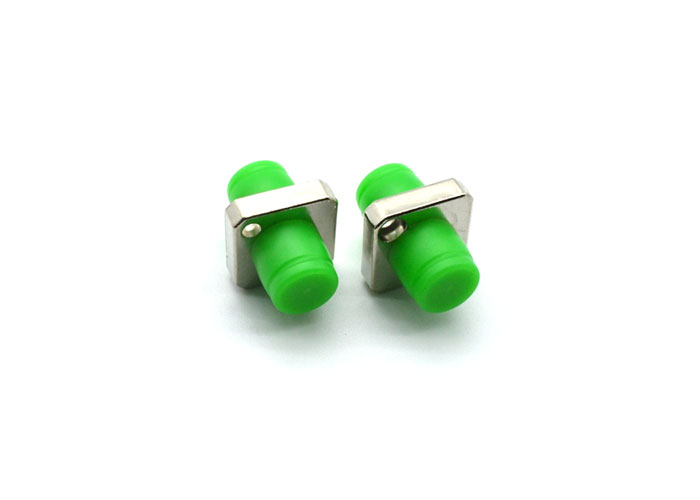

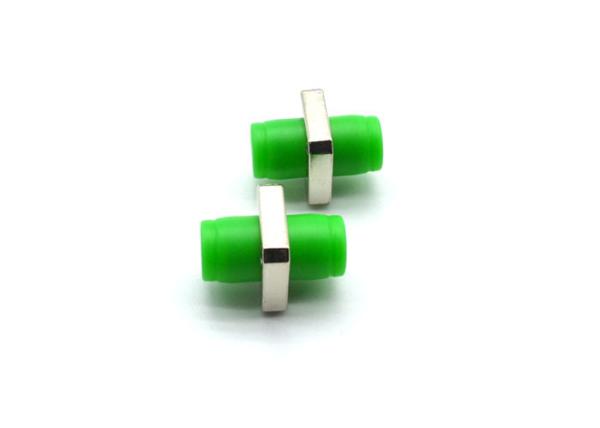

4. Product Show:
5. FAQ:
1. What is your quality control?
-Quality is our soul and culture.We have 100%strict inspection and
testing before shipment.We will return the money to you if there is
quality problem.
2. Can you accept small order?
-Yes,small order is available in our company.We support new project
of our customers as we know business is always from small to big.
Your sucess is my business.
3. Can I order samples before placing the bulk order?
-Yes,samples is certainly for your test before the bulk order.It is
normal process,we always deal with other clients.
However,we will charge for a small amount of deposit in case the
investment on new samples.But please donot worry, the sample
deposit will refund to you when bulk order fixed.
4. What is the lead time for samples?
-About sample making,it usually takes 1-3days include testing to
make sure its excellent.
If urgently,please kindly let us know,we will do our best to catch
up with your schedule.
5. Can you supply customized products and logo?
-Yes,of course we can.We supply OEM&ODM service.You can send us
your drawing.
6. Carefiber Services:
Before Sale Service:
We provide professional offer. Provide detailed products test
report and related specifications.
We provide professional technology support to meet the requirements
of customers.
Within 12 hours of the corresponding customer inquiry,our
commissioners will promptly get in touch with the customers.
After Sale Service:
Carefiber comes with a one year limited warranty from the date of
the purchase by the clients. If a material or workmanship defect
arises and a valid claim is received within the warranty period, we
will replace the items only and bear the shipping cost for both
sides. we could not be held liable for damages to personal property
due to misuse or improper care and maintenance of items. There is
no fault rate for the items we delivered, if there is fiber optic
equipment that does not work when you get it, just contact us. If
we should be responsible for it after we test,we will replace it
for you.We are equipped with the good after service department and
never escape our responsibility.
Carefiber Optical Technology Co., Limited has passed the
international quality certification: ISO 9001. We not only have
top-ranking quality control departments but also establish complete
and reliable quality assurance system. We carry out the system in
all procedures and processes of production and management.
Moreover, we adopt advanced quality control equipment and
first-rate expert team, making sure best products' quality to
customers in the whole world.
Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of
fiber optical technology and high quality fiber optical
communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor,
Fiber optic PLC splitter,Fast connector, Fiber optic patch
panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can
also offer insertion and return loss tester, interferometer test
machine, connector tip microscope, connector crimping machine,
connector polishing machine, connector heating oven, automatic
cable cutting machine, etc.
We sincerely invite all interested buyers to visit our company and
contact us directly for further information. Carefiber, Care you
life.
