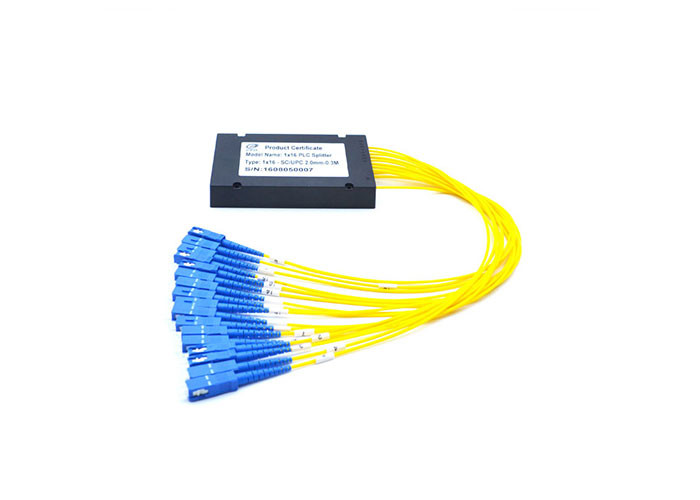

Low Insertion Loss Fiber Optic PLC Splitter 1260 - 1650nm
Wavelength With Box
We offer several types of high-quality splitters. These products
are designed for long-term reliability, superior performance, and a
wide range of uses in fiber optics including optical transmission,
long haul, subscriber loop, and fiber to the home,
telecommunications, CATV, test equipment, optical fiber sensors,
data communications and wide-area network.
Our optical splitters are designed for consistent performance, low
optical loss, low polarization sensitivity, superior environmental
and mechanical characteristics, and fast installation. They also
enable more effective monitoring and management of fiber optical
networks.
1. Features:
Excellent Uniformity
High reliability, stability
The quality is more credible and stable than fusion coupler
splitter
With low insertion loss, Low Polarization Dependent Loss, better
return loss and the directivity,
Broadband operating, wavelength :1260nm ~1650nm wavelength range to
achieve the planned distribution of optical power
2. Technical Data:
Table1. 1XN PLC splitter(with connector)
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Operating Wavelength (nm) | 1260～1650 |
| Insertion Loss (dB) | ≤4.3 | ≤7.5 | ≤11.0 | ≤14.0 | ≤17.0 | ≤21.0 |
| Loss Uniformity (dB) | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss(dB) | UPC≥50dB；APC≥55dB |
| Directivity (dB) | ≥55 |
| Pigtail Length (m) | 1m or customer specified |
| Fiber Type | G657A or customer specified |
| Operation temperature(℃) | -40~85 |
Note: All measurements were done at room temperature. Above parameters all testing at 1310nm,1550nm wavelength, if it
test at 1260~1300nm,1600～1650nm,then insertion loss would be add
0.3dB based on above parameters. |
Table2. 2XN PLC splitter(with connector)
| Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
| Operating Wavelength (nm) | 1260～1650 |
| Insertion Loss (dB) | ≤4.5 | ≤8.0 | ≤11.7 | ≤14.7 | ≤17.9 | ≤21.2 |
| Loss Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss(dB) | UPC≥50dB；APC≥55dB |
| Directivity (dB) | ≥55 |
| Pigtail Length (m) | 1m or customer specified |
| Fiber Type | G657A or customer specified |
| Operation temperature(℃) | -40~85 |
Note: All measurements were done at room temperature. Above parameters all testing at 1310nm,1550nm wavelength, if it
test at 1260~1300nm,1600～1650nm,then insertion loss would be add
0.3dB based on above parameters. |
3. Applications:
Access Network,EPON,GPON or WDM-PON
CATV system
Optical communication systems
Testing instruments
FTTH, FTTB
4. Specifications:
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Type: Bare-fiber type,micro type,ABS box type,Cassette type
Adapter type of splitter: SC/UPC, SC/APC
5. Our Service:
1.Any question will be replied within 24 hours.
2.Professinal manufacture,Welcom to vist our company.
3.100% test before shipping.
4.OEM/ODM is avaliable(As required print logo and customized
color).
5.Fast delivery time(2 days for samples,order 3~7 days for bulk
production)
6. FAQ
1.Are you a trade company or a manufacturer?
We are an manufacturer specialized in Fiber Optic PLC splitter,
Patch Cords,Adapter ,Fast connector and other Communication
Products. OEM & ODM service are available.
2.What is your delivery date?
The delivery date is about 5-15 days after receipt of payment.
3.Can you send free samples?
Yes, free samples are available; you just need to pay the express
fee. You can provide your a/c like DHL,
or you can call your courier to pick up from our office.
Professional PLC manufacturer---Caerfiber,Care you life!
