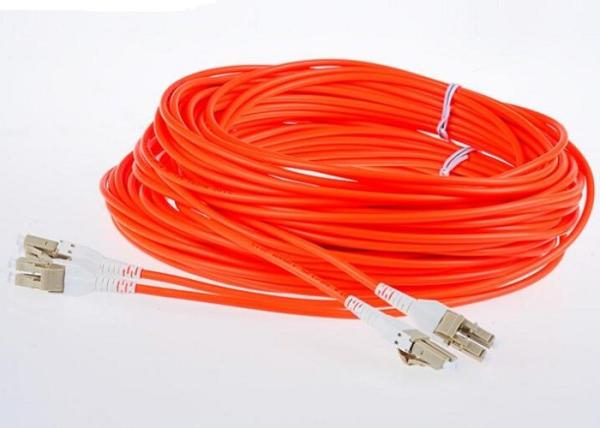

LSZH Jacket LC - LC Fiber Optic Patch Cables MM Duplex G652D 50 / 125 Fiber Optic Cable

1. Features:

Compliance with the Standard of IEC and YD/T1272
High Return Loss and Low Insertion Loss
Good Repeatability and Interchangeability
High Reliability and Stability
PC,UPC,APC Polishing
Single mode,Multi-Mode Versions
Various Types of Connectors:FC,SC,ST,MU,LC,MTRJ,MPO,E2000,etc
Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail Cable
Multiple option of Optic Cable Core,Simplex,Twin cores,4 Cores,6 Cores,12 Cores,24 Cores, 48 Cores

2. Applications:

Testing equipment
FTTX+LAN
Optical fiber CATV
Telecommunications




3. Specifications:

Model No.: Fiber patch cable LC/UPC LC/UPC

Connector Style:LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female,

Fiber Type:9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125,10G (Multimode) OM3

Cable Type: Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber ,PVC or LSZH

Polishing Manner:UPC,SPC,APC (8°& 6°)

Insertion Loss: ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750

Return Loss: UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750

Geometry Requirment for single mode: Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

4. FAQ:

How can you guarantee the delivery time?

1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.

2. We can regulate the penalty clause in the contract for the late delay.

What's your best price?

Based on the quality of our products and the quantity of your estimated, we would quote the great best matching price all the time.

What's your MOQ ? can I print our LOGO?

Sure, the MOQ of each color is 20 pcs, yes of cours, we can print your logo on products.

Can you provide OEM/ODM service?

Yes, we can. Please tell us the details of your requirements

How can you prove our business credit and make my business sale?

you could use the Alibaba Trade Assurance for the payment. if the delivery is not match the contact, the trade assurance would be safe for your money and we have no bad credit in last years.

Why choose us to cooperate?

1. We have first-class production line and strict quality management system.

2. We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.

3. We can provide the most competitive price to meet your budget.

4. We also design and innovate the new products based on our rich experience .

5. We have professional team to provide comprehensive one-stop service for you.

5. Please let us know what we can do for you in FTTH field.

Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.

We sincerely invite all interested buyers to visit our company and contact us directly for further information. Carefiber, Care you life.

Carefiber Optical Technology Co., Ltd. (in short name: CFO), established in 2011, is located on the 10th floor (headquarters) of the Jinhua Building, Longhua District, Shenzhen. The FTTX accessories production base is located in the National High-tech Industrial Park of Baise City, Guangxi. The outdoor optical cable factory is located in the Suchu National High-tech Industrial Park, by for now, we currently employ 360 people, and cover an area of 30,000 square meters, up till now the total investment in carefiber is about USD 5 million, specializing in the production of various indoor and outdoor optical fiber cables and optical fiber connectors, the products are widely used by telecom operators in the world. 95% of the products are exported to more than 60 countries around the world.

Carefiber has the ability to produce a full range of optical cables, ABF cables, ADSS, various types of direct buried, pipeline, and aerial optical cables, as well as indoor and outdoor butterfly optical cables, building distribution cables, and access cables. The annual output capacity of optical cables is 3.5 million core kilometers. The FTTX accessories production base is mainly centered on FTTH FTTA supporting facilities, and independently produces PLC splitters, fiber optic fast connectors, fiber jumpers, FTTA base station waterproof jumpers, MPO/MTP 5G data center supporting products, etc., with an annual production capacity of 35 million PCS connector. At the same time, we work with many customers to develop and design optical fiber distribution boxes, optical cable connection boxes, indoor and outdoor cabinets, etc. to meet the needs of different customers for the market and provide customers with one-stop procuring services.

Carefiber people adhere to: "Excellent quality" can be a first-class corporate philosophy, and strive to improve quality products and services that exceed customer needs. Strictly follow the ISO9001 quality management system and ISO14001 environmental management system throughout the entire process to ensure high-quality products and have various international certifications such as CE, ROHS, ANATEL, etc. to guarantee the products required by customers.
