Factory Manufacture SM/MM Fiber Optical Connector 3.0mm / Duplex LC
UPC Series
1. Product Description:

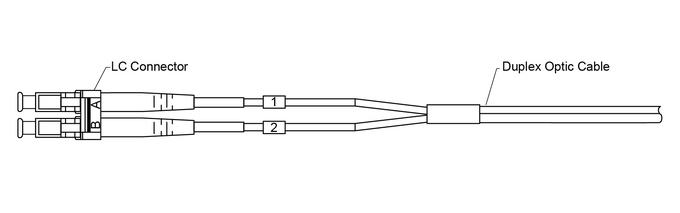

A Duplex LC connector is an LC connector with a bidirectional
transmission function. Traditional LC connectors are usually used
for one-way transmission, that is, they can only achieve one-way
sending or receiving functions. The duplex LC connector can achieve
bidirectional sending and receiving functions at the same time by
integrating two independent optical fiber channels inside a
connector.
Carefiber offers a wide selection of fiber optic Connectors. Our
selection includes SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN,
SMA-905/906, and D4 models. What differentiates us is that our
patch cord connectors have been designed with a utility patent.
This provides a unique solution to fiber connection.
2. Technical Parameters:
| Project | Spec. | Standard |
| Operation loss | 850～1300nm | GR-326-CORE； IEC 61300 |
| Insertion loss | ≤0.3dB(Typical value:0.2dB) |
| Return loss | ≥45dB |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mechanical Endurance | ≥500 Times |
| Working temperature | -40～+85℃ |
3. Features:
1. High Density: The duplex LC connector achieves bidirectional transmission by
integrating two channels inside one connector, while reducing the
number of connectors and occupying space, providing a higher
connection port density.
2. Simplified wiring: The traditional one-way LC connector requires two optical fiber
connecting wires for sending and receiving respectively, while the
duplex LC connector only requires one optical fiber connecting
wire, simplifying the complexity of optical fiber wiring.
3. Improve efficiency: Duplex LC connectors improve the transmission efficiency and
bandwidth utilization of fiber optic communication systems by
performing bidirectional transmission at the same time.
4. Interlocking design: In order to avoid interference between sending and receiving
signals, duplex LC connectors usually adopt an interlocking design
to ensure isolation and stability between the two channels.
4. Applications:
1. Data Transmission Networks
2. Image transmission Networks
3. Optical test instrument
4. Photoelectric automatic control system
5. Carefiber Services:
1. Any questions will be replied to within 24 hours.
2. Professional manufacturer, Welcome to visit our company.
3. 100% test before shipping.
4. OEM/ODM is available (As required print logo and customized
color).
5. Fast delivery time(2 days for samples,order 3~7 days for bulk
production)
6. FAQ:
Q1: What is a Fiber Optic Patch Cord?
A: A Fiber Optic Patch Cord is a length of fiber optic cable
terminated with a connector on each end, used to connect network
devices like switches, routers, media converters, etc. The brand
name is CFO and the place of origin is China.
Q2: What are the types of Fiber Optic Patch Cord?
A: There are two types of Fiber Optic Patch Cord: single-mode and
multimode. Single-mode Fiber Optic Patch Cord is used for
long-distance communication. Multimode Patch Cord is used for
short-distance communication.
Q3: What are the advantages of Fiber Optic Patch Cord?
A: Fiber Optic Patch Cord has many advantages, including high speed
and large bandwidth, low power consumption, low signal loss, and
electromagnetic interference immunity.
Q4: What kind of connector is used for a Fiber Optic Patch Cord?
A: The most common connectors used in Fiber Optic Patch Cord are
LC, SC, ST, and FC. They are used to connect network devices like
switches, routers, media converters, etc.
Q5: What is the length of Fiber Optic Patch Cord?
A: The length of Fiber Optic Patch Cord varies from 0.5m to 100m,
depending on the application.
