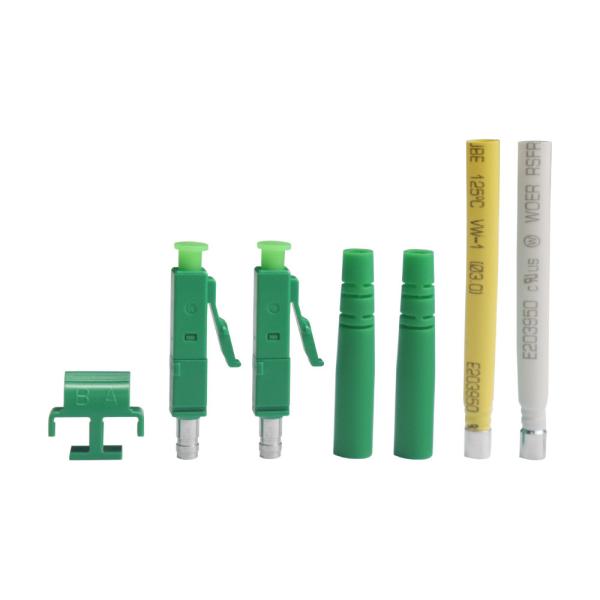

Duplex LC APC Connector Fiber Optic Patch Cord for Outdoor
Applications
1. Product Description:
A Duplex LC connector is an LC connector with a bidirectional
transmission function. Traditional LC connectors are usually used
for one-way transmission, that is, they can only achieve one-way
sending or receiving functions. The duplex LC connector can achieve
bidirectional sending and receiving functions at the same time by
integrating two independent optical fiber channels inside a
connector.
Carefiber offers a wide selection of fiber optic Connectors. Our
selection includes SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN,
SMA-905/906, and D4 models. What differentiates us is that our
patch cord connectors have been designed with a utility patent.
This provides a unique solution to fiber connection.
2. Technical Parameters:
| Project | Spec. | Standard |
| Operation loss | 1260～1650nm | GR-326-CORE； IEC 61300 |
| Insertion loss | ≤0.3dB(Typical value:0.2dB) |
| Return loss | ≥60dB(APC)≥50dB(UPC) |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mechanical Endurance | ≥500 Times |
| Working temperature | -40～+85℃ |
3. Features:
- Low insertion loss and high return loss
- Excellent end-face geometry parameter
- Special specifications are available upon the customer’s request.
4. Applications:
1. Data transmission Networks
2. Image transmission Networks
3. Optical test instrument
4. Photoelectric automatic control system
5. Carefiber Services:
1. Any questions will be replied to within 24 hours.
2. Professional manufacturer, Welcome to visit our company.
3. 100% test before shipping.
4. OEM/ODM is available (As required print logo and customized
color).
5. Fast delivery time(2 days for samples,order 3~7 days for bulk
production)
6. FAQ:
Q1: What is a Fiber Optic Patch Cord?
A: A Fiber Optic Patch Cord is a length of fiber optic cable
terminated with a connector on each end, used to connect network
devices like switches, routers, media converters, etc. The brand
name is CFO and the place of origin is China.
Q2: What are the types of Fiber Optic Patch Cord?
A: There are two types of Fiber Optic Patch Cord: single-mode and
multimode. Single-mode Fiber Optic Patch Cord is used for
long-distance communication. Multimode Patch Cord is used for
short-distance communication.
Q3: What are the advantages of Fiber Optic Patch Cord?
A: Fiber Optic Patch Cord has many advantages, including high speed
and large bandwidth, low power consumption, low signal loss, and
electromagnetic interference immunity.
Q4: What kind of connector is used for a Fiber Optic Patch Cord?
A: The most common connectors used in Fiber Optic Patch Cord are
LC, SC, ST, and FC. They are used to connect network devices like
switches, routers, media converters, etc.
Q5: What is the length of Fiber Optic Patch Cord?
A: The length of Fiber Optic Patch Cord varies from 0.5m to 100m,
depending on the application.
