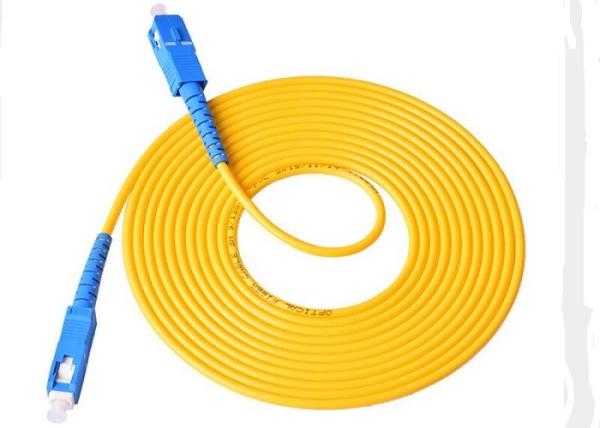

3.00mm 3M SC - SC Fiber Patch Cord , LSZH / PVC Jacket Fiber Optic
Jumper Cables
Factory manufactured optic fiber patch cord,used in connecting
receiver and terminal box.with many interfaces optional LC,SC,ST,SC
1. Application:
1. Optic-fiber Communication Systems
2. Optic-fiber Data Communications
3. Optic-fiber Access Networks
4. Optic-fiber CATV
5. LAN
6. Test Equipment
7. Telecommunication networks
8. Local Area Networks(LANs)
9. Test Equipment
10. FTTH
2. Features:
1. ompliance with the Standard of IEC and YD/T1272
2. High Return Loss and Low Insertion Loss
3. Good Repeatability and Interchangeability
4. PC,UPC,APC Polishing
5. Single mode,Multi-Mode Versions
6. Various Types of Connectors:FC,SC,ST,MU,LC,MTRJ,MPO,E2000,etc
7. Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail
Cable
8. Multiple option of Optic Cable Core,Simplex,Twin cores,4 Cores,6
Cores,12 Cores,24 Cores, 48 Cores
3. Specification:
1. Insertion Loss ----Single mode:PC≤0.3dB, UPC≤0.2dB, APC≤0.2dB,
MTRJ≤0.5dB; Multi-2. mode:PC≤0.3dB, MTRJ≤0.5dB
2. Return Loss ----PC≥45dB,UPC≥50dB, APC≥65dB, MTRJ≥40dB
3. Repeatability:≤0.2dB
4. Frequency of Usage:≥1000Times
5. Operating Temperature Range:-40°C~+85°C
4. Order Information:
| Fiber Optic Patch Cord |
| Connector Type | Ceramic Ferrule Bore End Face | Cable Diameter | Simplex/Twin core | Single mode/Multi-mode | Length |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Twin core | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Twin core | SM/MM | Customized |
| ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Twin core | SM/MM | Customized |
| LC | PC/UPC | Φ0.9, Φ2 | Simplex/Twin core | SM/MM | Customized |
| MU | PC/UPC | Φ0.9, Φ2 | Simplex/Twin core | SM/MM | Customized |
| MTRJ | PC/UPC | Φ0.9, Φ3 | Simplex/Twin core | SM/MM | Customized |

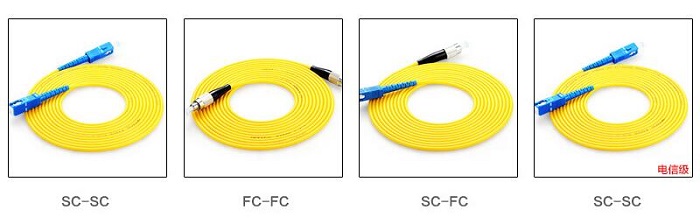

5. Product Show:
6. Our Service:
A Leading Chinese Fiber Optics Manufacturer, Supplier & Exporter!
Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of
fiber optical technology and high quality fiber optical
communication products. We provide fiber optic patch cord, fiber optic connector, fiber optic adaptor,
FTTH fast connector, patch cord production line equipment and fiber
optic patch panel. For high-quality patch cord production line equipment, we can
also offer insertion and return loss tester, interferometer test
machine, connector tip microscope, connector crimping machine,
connector polishing machine, connector heating oven, automatic
cable cutting machine, etc.
Carefiber Optical Technology Co., Limited has passed the
international quality certification: ISO 9001. We not only have
top-ranking quality control departments but also establish complete
and reliable quality assurance system. We carry out the system in
all procedures and processes of production and management.
Moreover, we adopt advanced quality control equipment and
first-rate expert team, making sure best products' quality to
customers in the whole world.
We sincerely invite all interested buyers to visit our company and
contact us directly for further information. Carefiber, Care our
life.
