    Self Supported Aerial Fiber Optic Cable , 2 to 144 Fiber Drop Cable GYTC8A

    Self Supported Aerial Fiber Optic Cable , Non - Armored Fiber Drop Cable GYTC8A

    1. Description

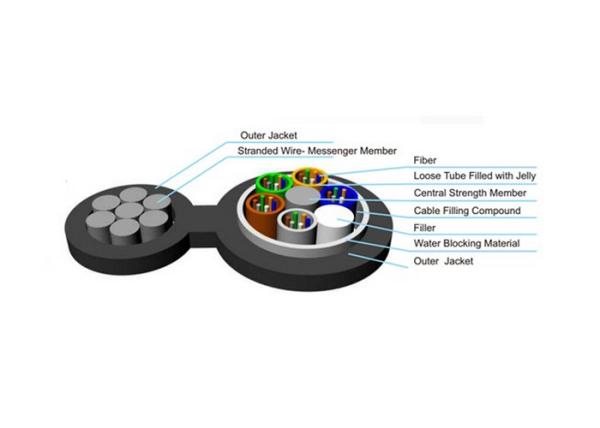

    Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.

    2. Optical Characteristics


    ItemsFiber type
    50/125um62.5/125umG.652G.655
    Attenuation(+20℃)@850nm≤3.0dB/km≤3.3dB/km
    @1300nm≤1.0dB/km≤1.0dB/km
    @1310nm≤0.36dB/km≤0.40dB/km
    @1550nm≤0.22dB/km≤0.23dB/km
    Bandwidth (Class A)@850nm≥500MHz•km≥200MHz•km
    @1300nm≥1000MHz•km≥600MHz•km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelength λcc≤1260nm≤1450nm




    3. Technical Parameters


    Fiber
    Count


    Tubes Count

    Cable Diameter
    (mm)

    Cable Weight
    (kg/km)

    Bending Radius
    Dynamic/Static
    (mm)

    Tensile Strength
    Long/Short term
    (N)

    Crush Resistance
    Long/Short term
    (N/100mm)

    2~3069.2X17.215020D/10D600/1500300/1000
    32~48810.2X18.217220D/10D600/1500300/1000
    50~721211.1X19.117720D/10D600/1500300/1000
    74~961212.4X20.420120D/10D600/1500300/1000
    >9620D/10D600/1500300/1000

    Note:
    ransport/Storage/Operating Temperature: -40Ċ~+70Ċ.
    All data in the table are for reference and subject to change without notification.


    4. Features:


    High tensile streghth of stranded wires meet the requirement of self-supporting and reduce the installation cost.

    Good mechanical and environmental performance.
    High strength loose tube that is hydrolysis resistant.
    Special tube filling compound ensure a critical protection of fiber.
    Steel wire used as the central strength member.
    Loose tube filling compound.
    100% cable core filling.
    Self Supported Aerial Fiber Optic Cable , 2 to 144 Fiber Drop Cable GYTC8A

    5. Our Serivces


    Any question will be replied within 24 hours.
    Professinal manufacture,Welcom to vist our company.
    100% test before shipping.
    OEM/ODM is avaliable(As required print logo and customized color).
    Fast delivery time(2 days for samples,order 3~7 days for bulk production)

    6. FAQ


    Are you a trade company or a manufacturer?
    We are an manufacturer specialized in Fiber Optic PLC splitter, Patch Cords,Adapter ,Fast connector and other Communication Products. OEM & ODM service are available.
    What is your delivery date?
    The delivery date is about 5-15 days after receipt of payment.
    Can you send free samples?
    Yes, free samples are available; you just need to pay the express fee. You can provide your a/c like DHL,
    or you can call your courier to pick up from our office.
    The cable marking can be as required to printing?
    Yes,You have only to give us your marking.
