    CATV / ODF SC Optical Fiber Pigtail 12 Core Bundle With Zirconium Dioxide Ferrule

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Bundle Pigtail
    Certification : Rohs SGS ISO9001:2008
    Payment Terms : Paypal;, L/C, T/T, Western Union
    Supply Ability : 5000pcs/day
    Delivery Time : 3days for samples, 7-15days for bulk order
    • Product Details
    • Company Profile

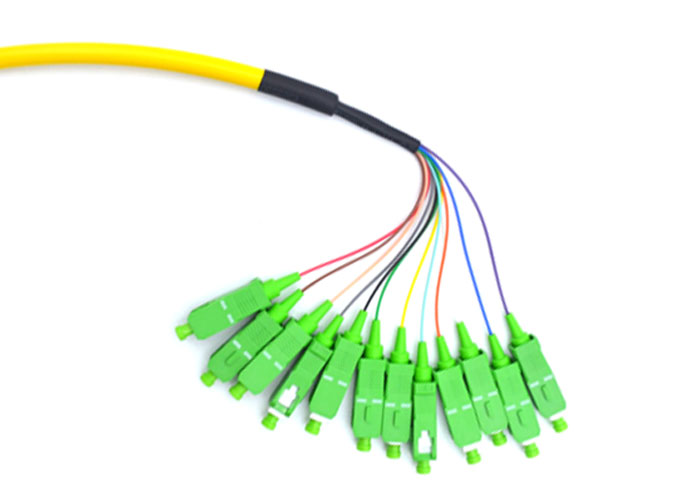

    CATV / ODF SC Optical Fiber Pigtail 12 Core Bundle With Zirconium Dioxide Ferrule

    CATV / ODF SM SC Fiber Optic Pigtail 12 Core Bundle With Zirconium Dioxide Ferrule

    Fiber optic pigtail , also named pigtail cables, is a short optical fiber permanently attached to a source, detector, or other fiber optical device at one end and an optical connector at the other. there are single mode & multimode and bunchy & ribbon optical fiber pigtails. It is used to interconnect transmission equipment to the fiber optic patch panel. The pigtail supports longer distance with lower loss for gigabit Ethernet, fiber channel and internet protocol applications. It is specifically designed for use with today's narrower aperture components.


    1. Features:


    Options: multimode and single-mode

    Wavelength: multimode, 850nm; Single-mode, 1310nm and 1550nm

    Transmission distance:Multimode: 500m, for short-distance interconnection

    Single-mode: 10Km and 40Km, for long-distance interconnection

    Color: Single-mode pigtail is yellow, multimode is orange

    Cable diameter: 3.0mm, 2.0mm, 0.9mm

    Connector types: FC, SC, LC, ST, MU,etc.

    Ferrule end-face: PC, APC simplex and duplex are available

    Supplier of China Telecom, China Mobile, China Unicom


    2. Applications:


    CATV

    Active dvice termination

    Telecommunication networks

    Metro

    Local Area Networks(LANs)

    Data Processing networks

    Test Equipment

    Premise installations.

    Wide Area Networks(WANs)


    3. Specifications:


    Connector typeSC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4
    Ferrule End facePC; UPC; APC
    Om type9/125UM; 50/125UM; 62.5/125UM
    Cable quantitySimplex; Double; 6cores; 12cores; 16cores; 24cores; 36cores; 48cores
    Cable DiameterΦ3.0MM; Φ2.0MM; Φ0.9MM
    Cable length1M; 2M; 3M; 4M etc., can be customized
    Cable typePVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored

    4. Ordering Information


    BootConnectorFiber TypeCable numberFerruleLengthColor

    0.9mm


    2.0mm


    3.0mm

    FC

    LC

    SC

    ST

    MU

    D4

    MTRJ

    MPO

    DIN

    E2000

    9/125um SM

    50/125um MM

    62.5/125um MM

    OM3

    OM4

    Simplex


    Duplex


    Multi-fiber


    Ribbon

    PC


    APC


    UPC

    1m

    2m

    3m

    4m

    5m

    ......

    Customized

    Aqua

    Black

    Biege

    Blue

    Gray

    Orange

    White

    Yellow


    5. Carefiber Service:


    As the specialists in the field of marketing,process development, design, engineering and project implementation, Carefiber focuses on continuous research and development to yield a range of products and service that guarantees technologically advanced solutions.


    Carefiber Optical Technology Co., Ltd. is one of the leading developers and professional manufacturers of fiber optical technology and high quality fiber optical communication products. We provide Fiber optic patch cord, Fiber optic connector, Fiber optic adaptor, Fiber optic PLC splitter,Fast connector, Fiber optic patch panel,Fiber terminal box,Fiber closure and more. For high-quality patch cord production line equipment, we can also offer insertion and return loss tester, interferometer test machine, connector tip microscope, connector crimping machine, connector polishing machine, connector heating oven, automatic cable cutting machine, etc.


    We sincerely invite all interested buyers to visit our company and contact us directly for further information. Carefiber, Care you life.
