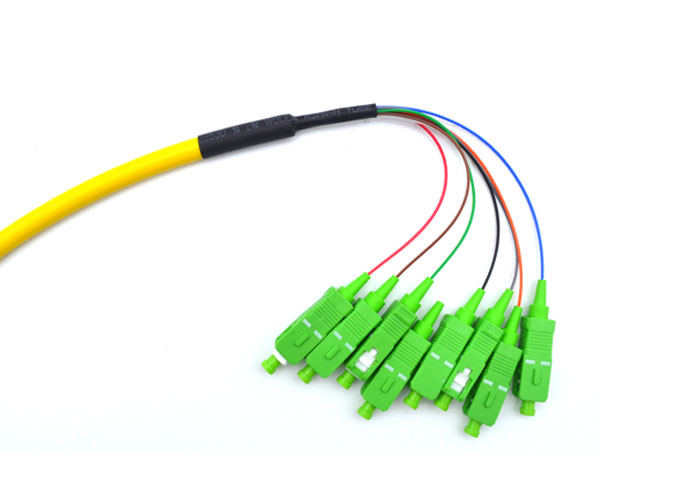

Bundle SM Fiber Optic Pigtail Patch Cord 8 Core Multimode With SC /
APC Connector
Fiber pigtails are a great solution for fusion splicing inside of a
fiber optic enclosure. The bunch fan-out fiber pigtails come with a
partial outer jacket to help protect the tight buffer fibers from
being damaged. If space is a premium, the outer jacket can easily
be removed, allowing the pigtails to have a tighter bend radius and
take up less space.
1. Features:
Compliance with the standard of IEC and YD-T826/1996
High return loss and Low insertion loss
Good reliability& stability
Three types:PC/UPC/APC
Simplex and Duplex cable
Cable diameter:Φ0.9/Φ2/Φ3
2. Applications:
Wiring of local area network between different enterprise buildings
Connection of optical links in optical active devices
Wiring in communication base station and distribution case
Production and testing of optical devices
Fiber optic communication system, CATV and telecommunication networ
LANs and WANs
FTTx systems
3. Specifications:
| Parameter | Specifiction |
| Matched Connector Type | SC/LC/FC/ST/MU/D4/DIN |
| Fiber Type | Single Mode | Multimode |
| Operating Bandwidth Range | 1250-1650nm | 850nm,1300nm |
| Testing Wavelength | 1310,1550nm | 850nm,1300nm |
| Insertion Loss | Typical<0.2dB,Max<0.3dB | Typical<0.15dB,Max<0.25dB |
| Return Loss | UPC>= 50.0dB,APC>=60.0dB | >=35.0dB |
| Repeatability | <=0.10dB | |
| Exchangeability | <=0.20dB | |
| Durability | 1,000 Mating, Typical<=0.20dB | |
| Tensile Force | >120N(except 0.9mm cable) or Customize | |
| Operating Temperature | min20- 70degrees | |
| Storage Temperature | min40- 85 degrees | |
4. Ordering Information
Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
5. Carefiber Advantages:
1. Lead time
With more than 200 employees in my company,at least 10,000
connectors can be produced in 1 day.
2. Research Department
With separated research team,it is advantageous that we are
able to have products customized.
3. Quality assurance
Every product will be tested to be of good quality.Meanwhile free
samples can be supplied
6. Carefiber Service:
Carefiber was founded in 2010 , starting with power cable and more than
6-year experiences in FTTH production, has provides range of
products for Structured Cabling System ( SCS ).
Carfiber is located in Shenzhen, China with one facility around 5000 square
meters. Based on high quality manpower and professional experiences
in this industrials . We have the confidence and ability to design
and manufacture various products for customers.
Own R&D team to improve our products according to real need
from End User, your request is our goal!
Carefiber can be your trusted consultant to handle Data Center, Enterprise
and Industrial intelligent structured cabling system.
we sincerely hope to expand the cooperation with all the customers
both at home and overseas,Each member of our term is dedicated to
excellence and encouraged to be creative and to take the
initiative.above all we strive to service your requirements in such
a way that you, our partner will feel nice about doing business
with us, we are looking forward to geting any requirement from you.
