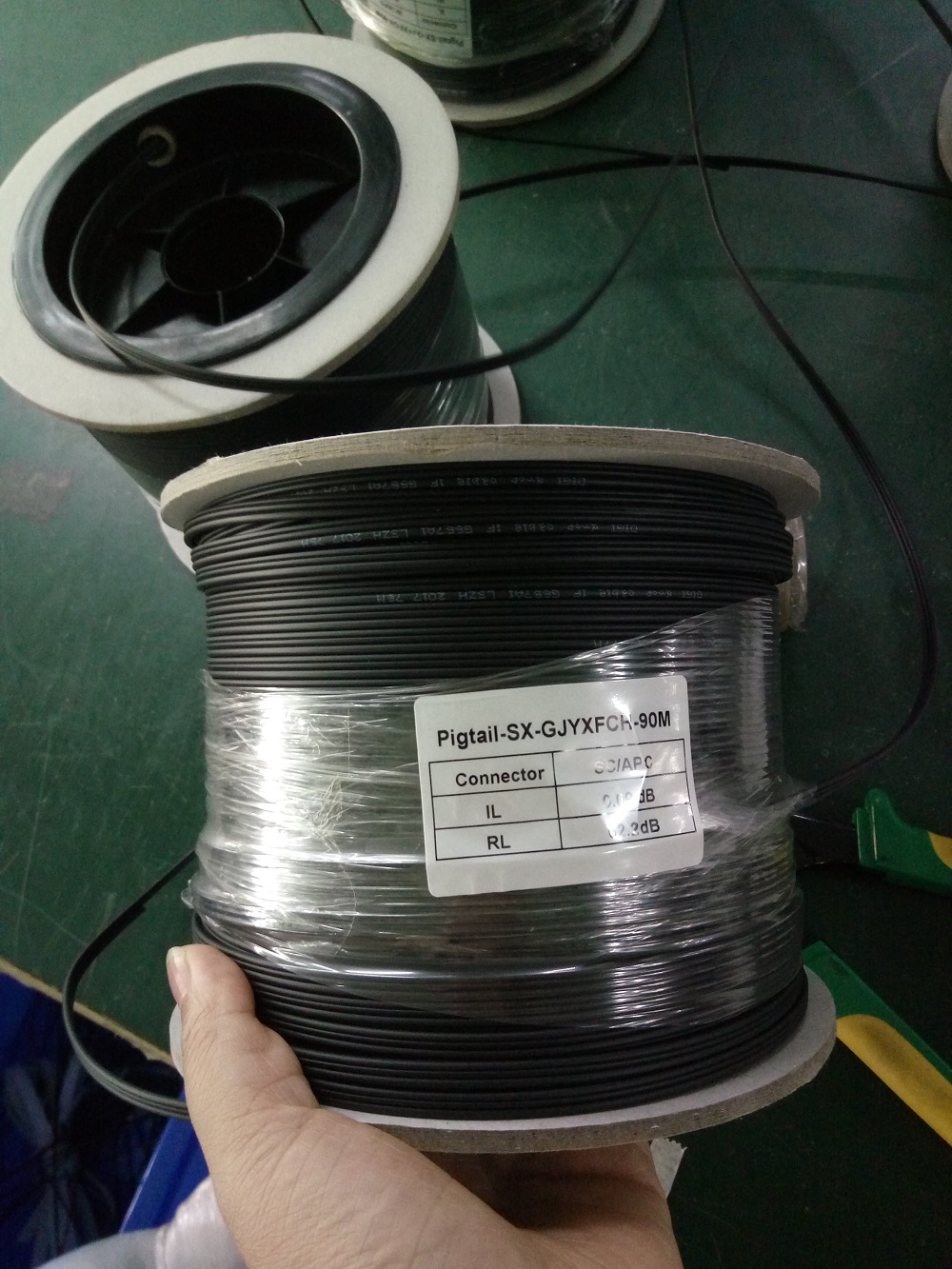

Outdoor FRP / KFRP Fiber Optic Drop Cable , FTTH Drop Cable Black
Jacket
FTTH drop cables are good to use for fiber to the home last mile
solution, we provide FTTH drop cable with different counts from 1,
2, 4, to 12. This cable adopts the popular design in the industry,
its structure and performance is optimized for FTTH applications.
Features & Benefits:
1. Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property;
2. Two parallel FRP strength members ensure good performance of
crush resistance to protect the fiber;
3. Simple structure, light weight and high practicability;
4. More bandwidth, reliability and low cost;
4. Novel flute design, easily strip and splice, simplify the
installation and maintenance;
5. Low smoke, zero halogen and flame retardant sheath.
Applications :
1. FTTH system
2. Indoor riser level and plenum level cable distribution
3. Interconnect between instruments, communication equipments.
Technical data:
| No. of cable | 1/2/4 |
| Fiber Model | G.657A1 |
| Steel wire | material | Phosphated steel wire |
| Diameter(±0.03)mm | 1.0 |
| NO. | 1 |
| FRP | Diameter(±0.03)mm | 0.5 |
| NO. | 2 |
| Outer Sheath | Material | LSZH |
| Color | Black |
| Cable Diameter(±0.2)mm | 2.0×5.0 |
| Cable Weight(±2)kg/km | 22 |
| Attenuation | 1310nm | dB/km | 0.4 |
| 1550nm | 0.3 |
| Allowable Tensile Strength | Short Term | N | 600 |
| Long Term | 300 |
| Allowable Crush Resistance | Short Term | N/100mm | 2200 |
| Long Term | 1000 |
| Min. bending radius | Without Tension | 20.0×Cable-φ |
| Under Maximum Tension | 40.0×Cable-φ |
Temperature range (℃) | Installation | -20~+60 |
| Transport&Storage | -40~+70 |
| Operation | -40~+70 |
| marking | CFO GJYXFCH-××B6a1 YD/T 1997.1-2014 ××××M year (or as customer requires) |
